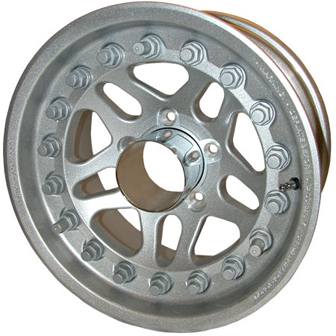

Model WA-0569

Specifications

GMC, Hummer H2 and Chevy trucks

Size:
17 x 8.5 inch
Bolt pattern:
8H – 6.5 inch BCD
Lug style:
60 degree conical
Hub bore diameter:
4.59 inches (116.7 mm)
SAE rated load:
2.900 lbs. – 60 psi
Backspacing available with:
4.50″ (114.3 mm)
Construction:
Cast aluminium alloy.
Wheel assembly includes:
Assembly studs and locking nuts, O-ring seal and Hub cover

Vehicle Fitment:

GMC
2003 – 2006 Sierra 1500 HD
2001 – 2006 Sierra 2500 HD
2003 – 2006 3500

Hummer
2003 – 2006 H2

Chevy
1999 – 2006 Silverado 2500 HD
1999 – 2006 Silverado 3500 SRW
2000 – 2006 Suburban 2500 HD
2002 – 2006 Avalanche 2500 4WD
