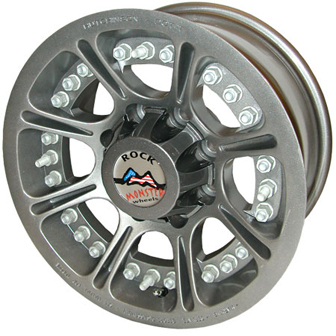

Model WA-0569

Specifications

GMC/Chevy

Size:
17 x 8.5 inch
Bolt pattern:
8H – 6.5 inch BCD
Lug style:
60 degree conical
Hub bore diameter:
4.595 inches (116.7 mm)
SAE rated load:
2.900 lbs. – 60 psi
Backspacing available with:
4.50 inch (114.3 mm); or 5.28 inch (134.1 mm)*
Construction:
Cast aluminium alloy
Wheel assembly includes:
Assembly studs and locking nuts, O-ring seal and Hub cover
